Microtrac 的 NANOTRAC Flex 是一种高度灵活的纳米粒度分析仪，基于动态光散射 (DLS)，可提供有关粒度、浓度和分子量的信息。 它可以通过可靠的技术、更高的精度和更好的准确度实现更快的测量。 所有这些都组合成一个带有革命性固定光学探头的紧凑型 DLS 分析仪。 凭借独特而灵活的探头设计以及在 NANOTRAC FLEX 中使用激光放大检测方法，用户可以选择合适的容器作为测量单元，以满足任何应用的需求。 这种设计还允许在很宽的浓度范围内测量样品、单峰或多峰样品，所有这些都无需事先了解粒度分布。 这是通过使用频率功率谱 (FPS) 方法而不是经典的光子相关光谱 (PCS) 方法来实现的。

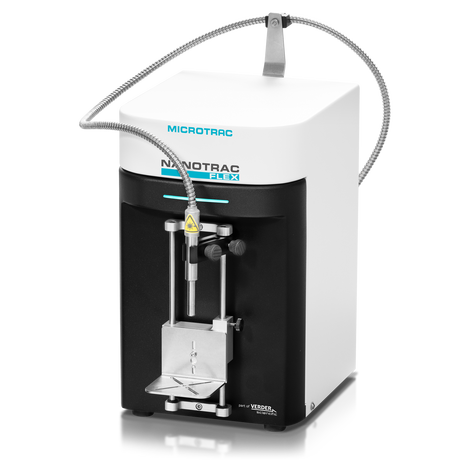

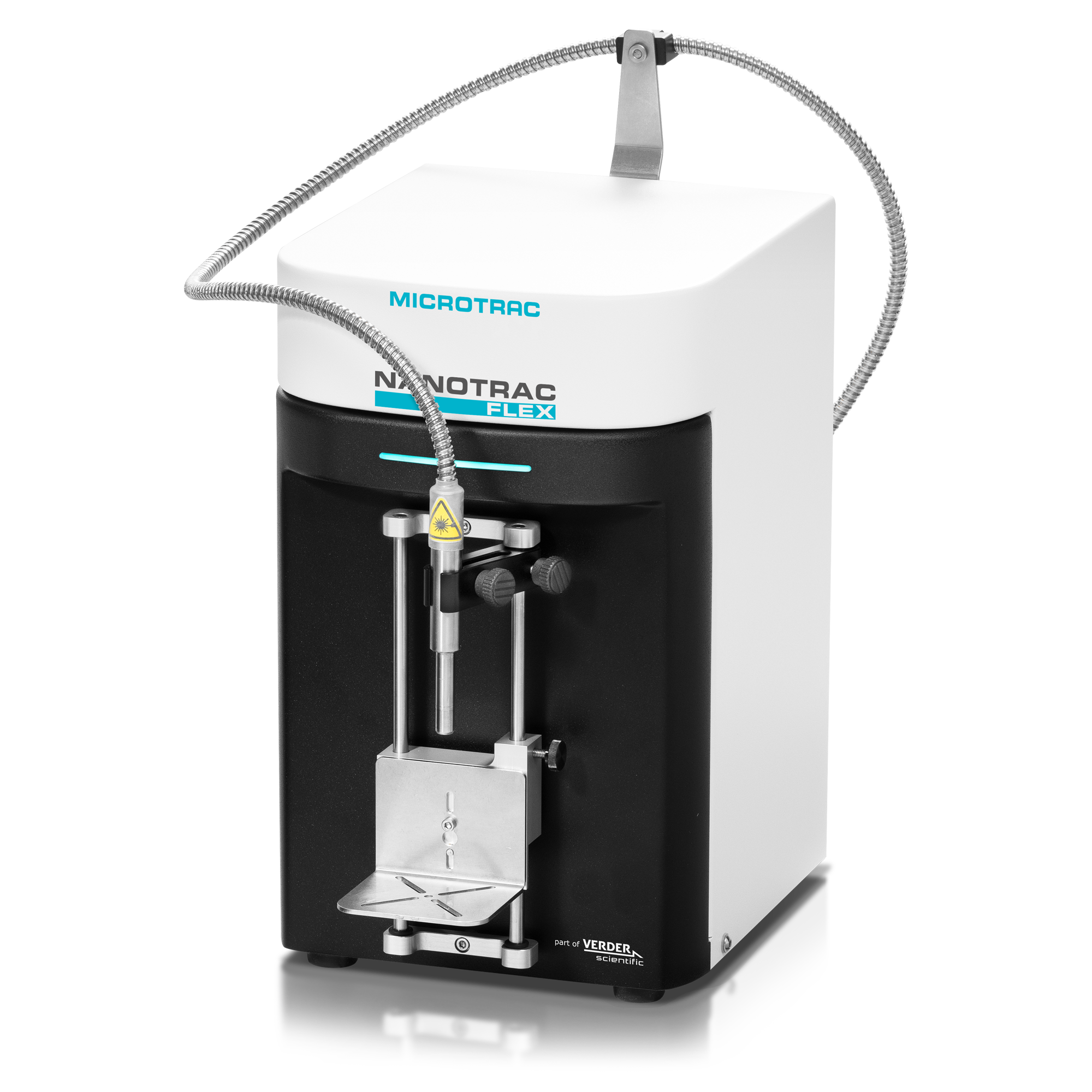

纳米粒径分析仪 NANOTRAC FLEX
- 有史以来最灵活的动态光散射分析仪

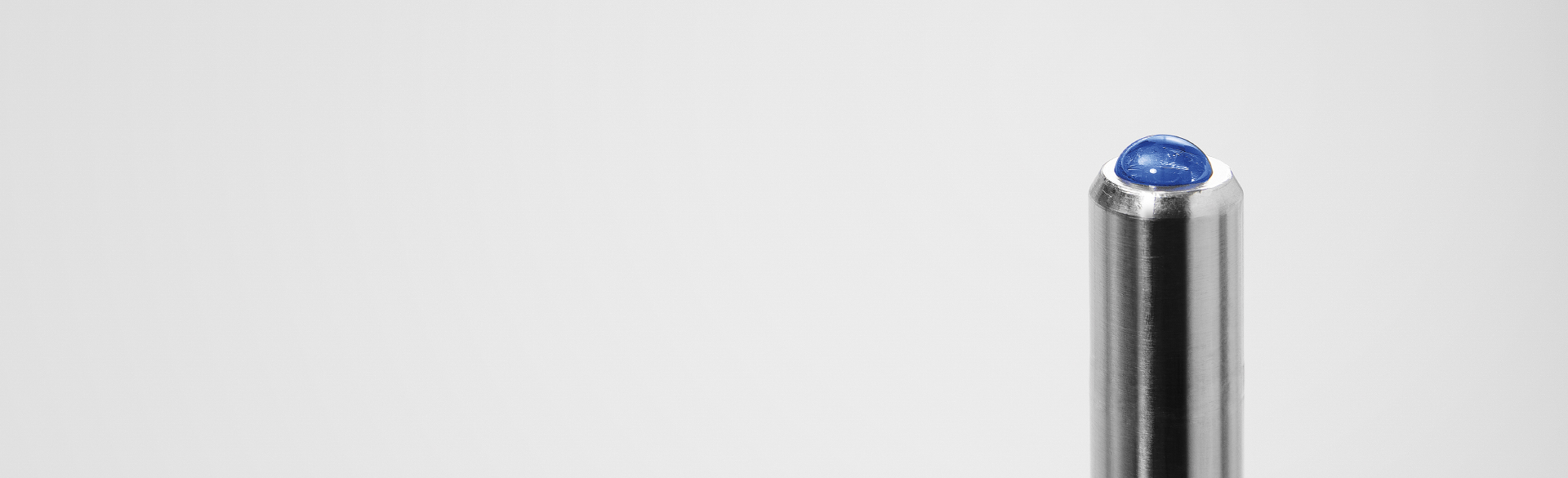

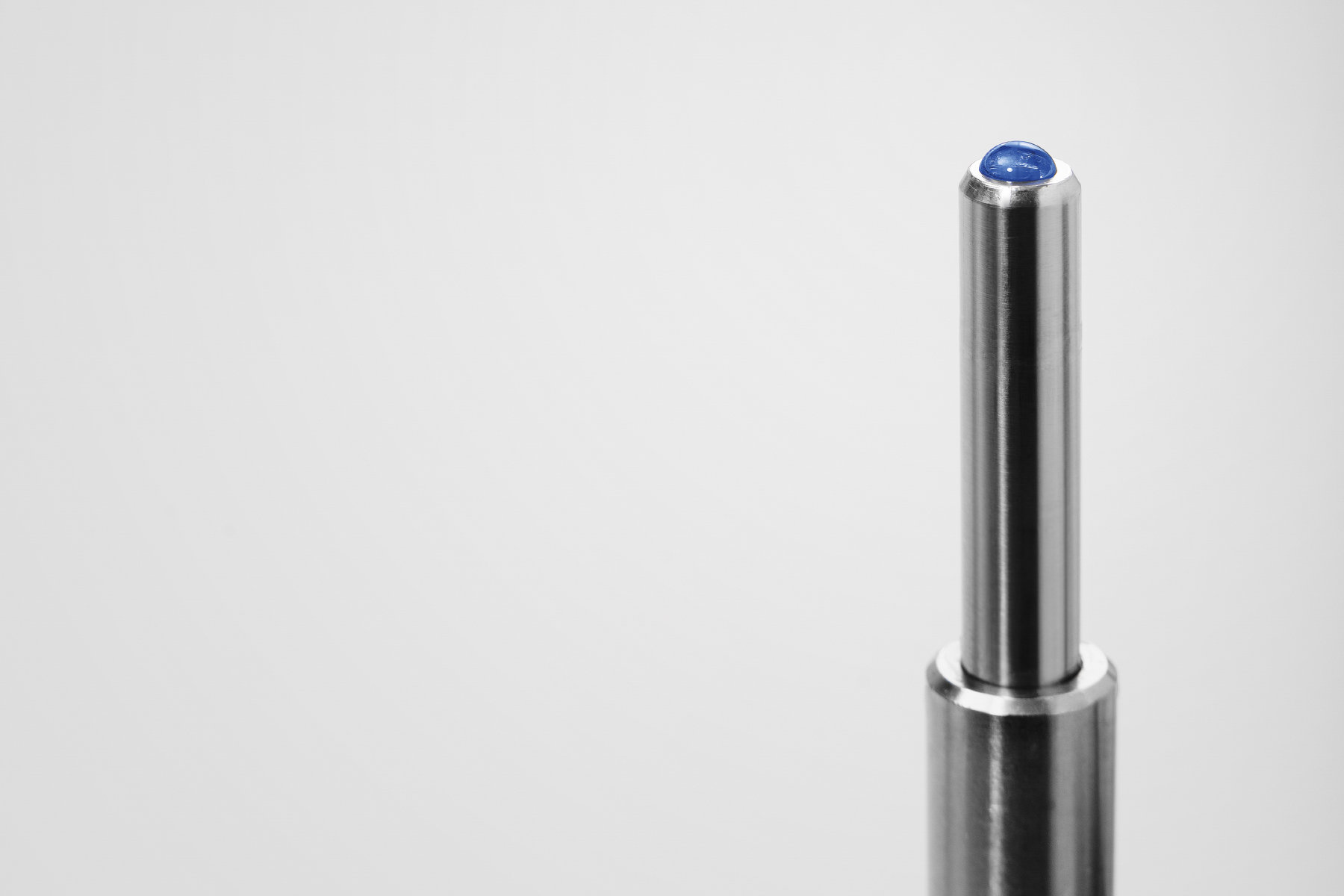

- 独特的外部探头设计
- 原位粒度测量和监测
- 180° 反向散射 DLS 设置

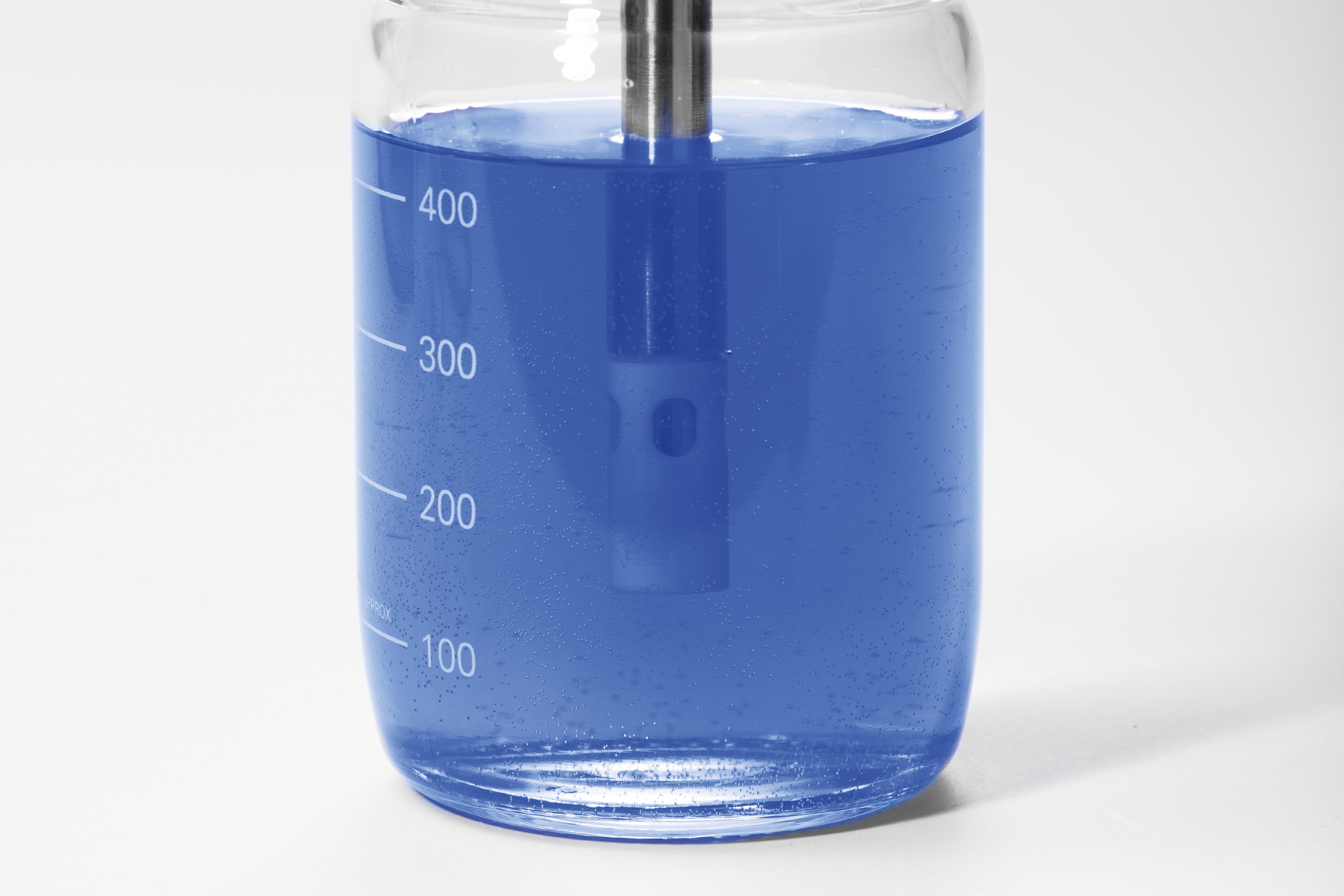

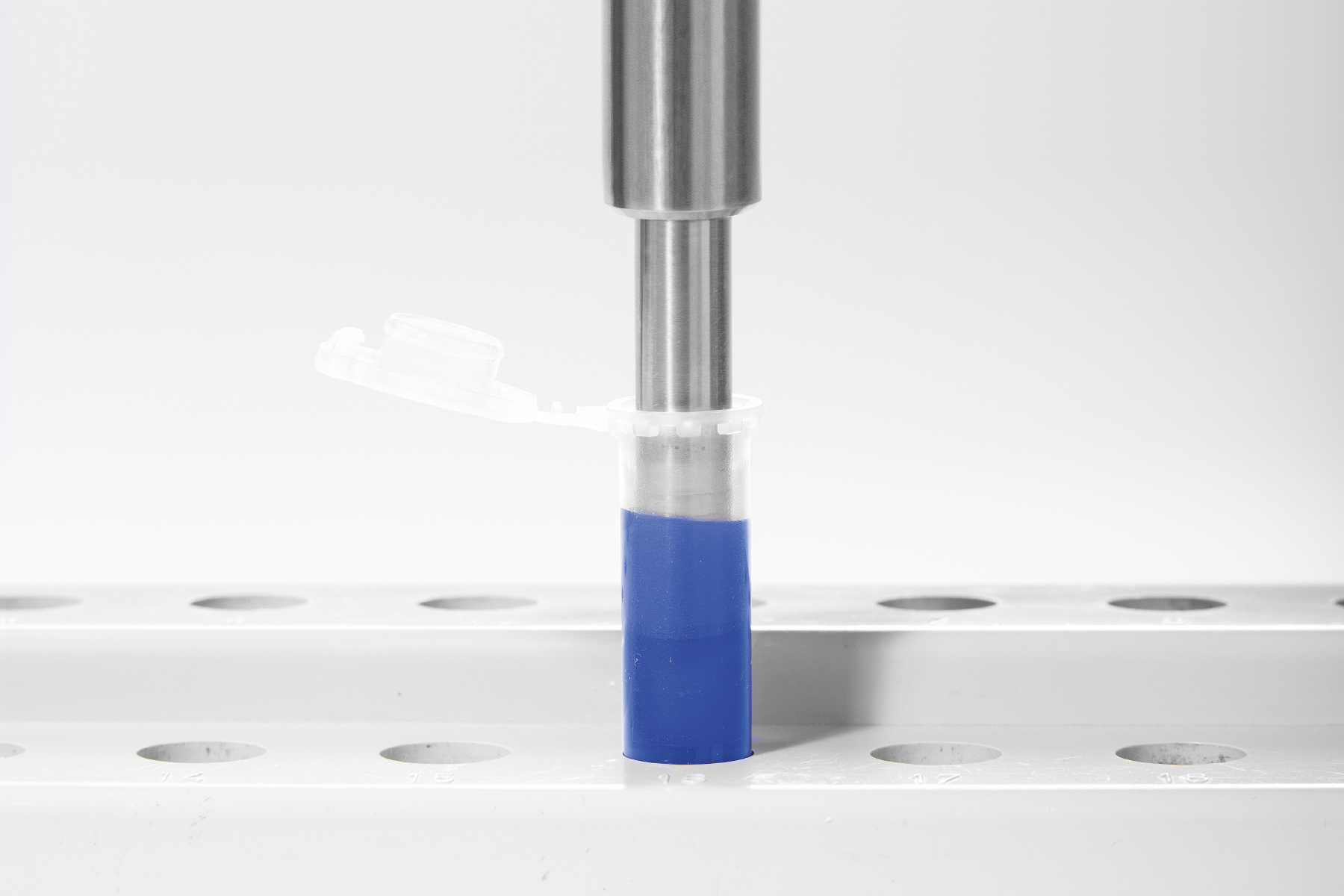

- 将任何容器变成样品池 - 无需消耗品
- 外部探头允许倾斜和测量
- 通用溶剂兼容性
- 小光斑
- 频率功率谱计算模型代替PCS
- 激光放大检测——高信噪比
纳米粒径分析仪 NANOTRAC FLEX NANOTRAC DUO – Precision in Particle and Zeta Potential Analysis
The DUO unites two proven technologies – NANOTRAC FLEX and STABINO ZETA – into one complete characterization suite. This integration allows simultaneous measurement of size and zeta potential within the same sample, enhancing efficiency and providing comprehensive data.
Experience the DUO Advantage:
- Comprehensive Analysis: Simultaneous size and stability measurements
- Sample Preservation: No additional dilution required
- Time Efficiency: Rapid, sequential measurements in one workflow
- Data Correlation: Direct correlation between particle size distribution and zeta potential results
- Flexible Use: Each instrument can be operated independently or seamlessly together as a single integrated solution
Applications:
- Nanomaterials & Advanced Materials
- Pharmaceutical Suspensions & Biotech Solutions
- Coatings, Paints, and Pigments
- Food, Beverages, and Nutraceuticals
- Chemical Manufacturing & Polymers
- Environmental Water Testing

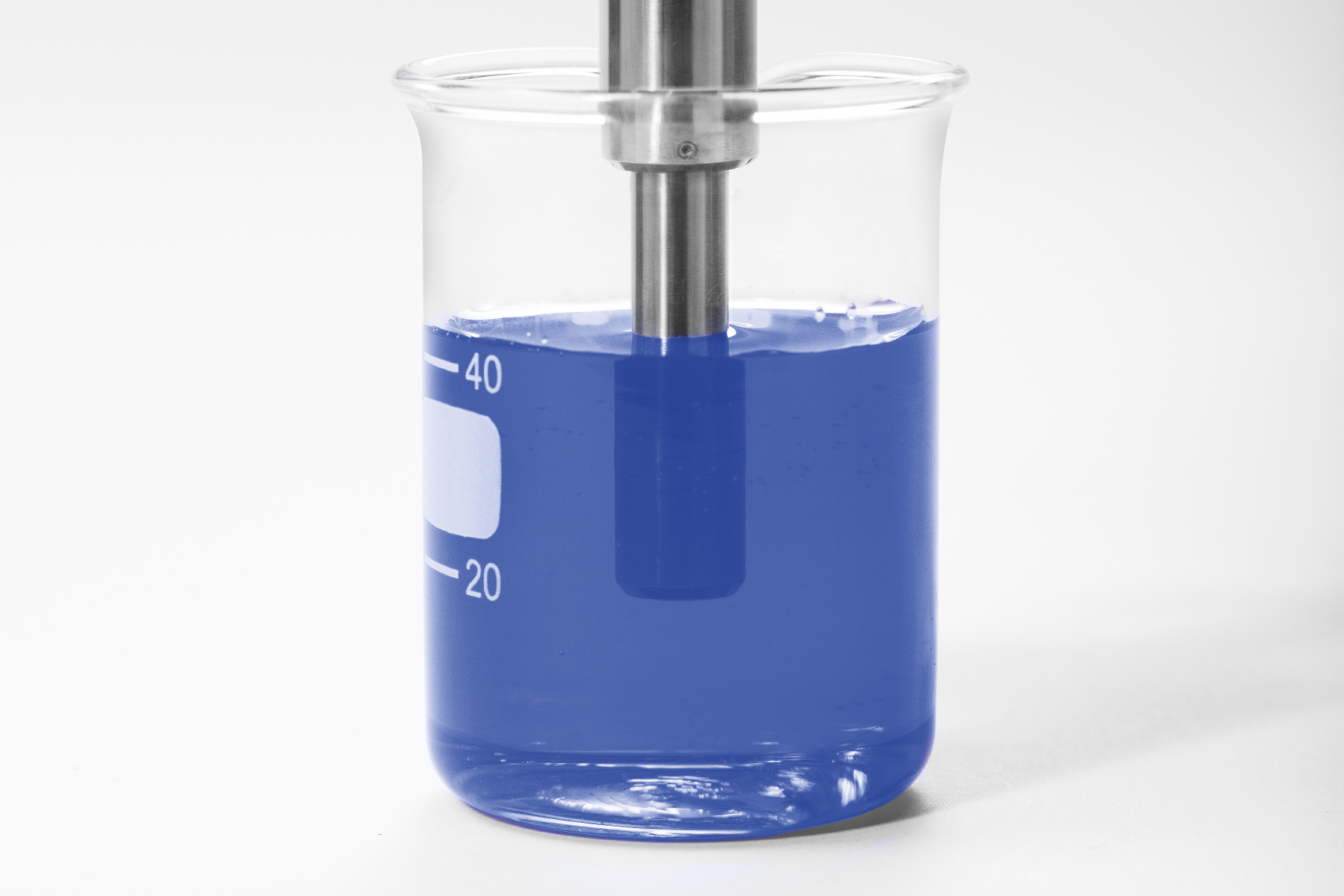

纳米粒径分析仪 NANOTRAC FLEX 灵活的原位测量

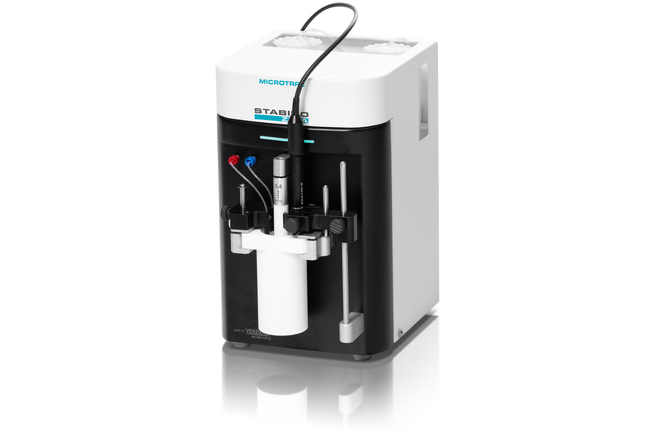

Zeta电位分析仪 NANOTRAC FLEX Fast Zeta Potential Measurement & Titration
The STABINO ZETA provides very fast, precise, and reproducible zeta potential measurements due to its high resolution and data point density, respectively. The STABINO ZETA can measure the zeta potential of particles in a range of 0.3 nm to 300 µm, with a concentration range of up to 40% by volume.
Thanks to the unique measurement technology, the STABINO ZETA can determine five parameters simultaneously within a few seconds. In combination with Microtrac’s DLS analyzer, NANOTRAC FLEX, the size can be measured at the same time, in the same sample.
In addition, the STABINO ZETA has a built-in titration function where all the parameters are analyzed simultaneously at every dosage step. The determination of the isoelectric point is one of the possibilities of titration and is completed within a few minutes.
纳米粒径分析仪 NANOTRAC FLEX 典型应用
多功能性是动态光散射 (DLS) 的一大优势，这使得该方法适用于研究和工业中的各种应用，例如药物、胶体、微乳液、聚合物、工业矿物、油墨等等。
药品
- 药品
- 油墨
- 生命科学
- 陶瓷
- 饮料 & 食物
乳剂
- 胶体
- 聚合物
- 微乳
- 化学品
- 化学试剂
钢铁
- 环境
- 粘合剂
- 金属
- 工业矿物
...等等！
要找到满足您的颗粒表征需求的最佳解决方案，请访问我们的应用数据库

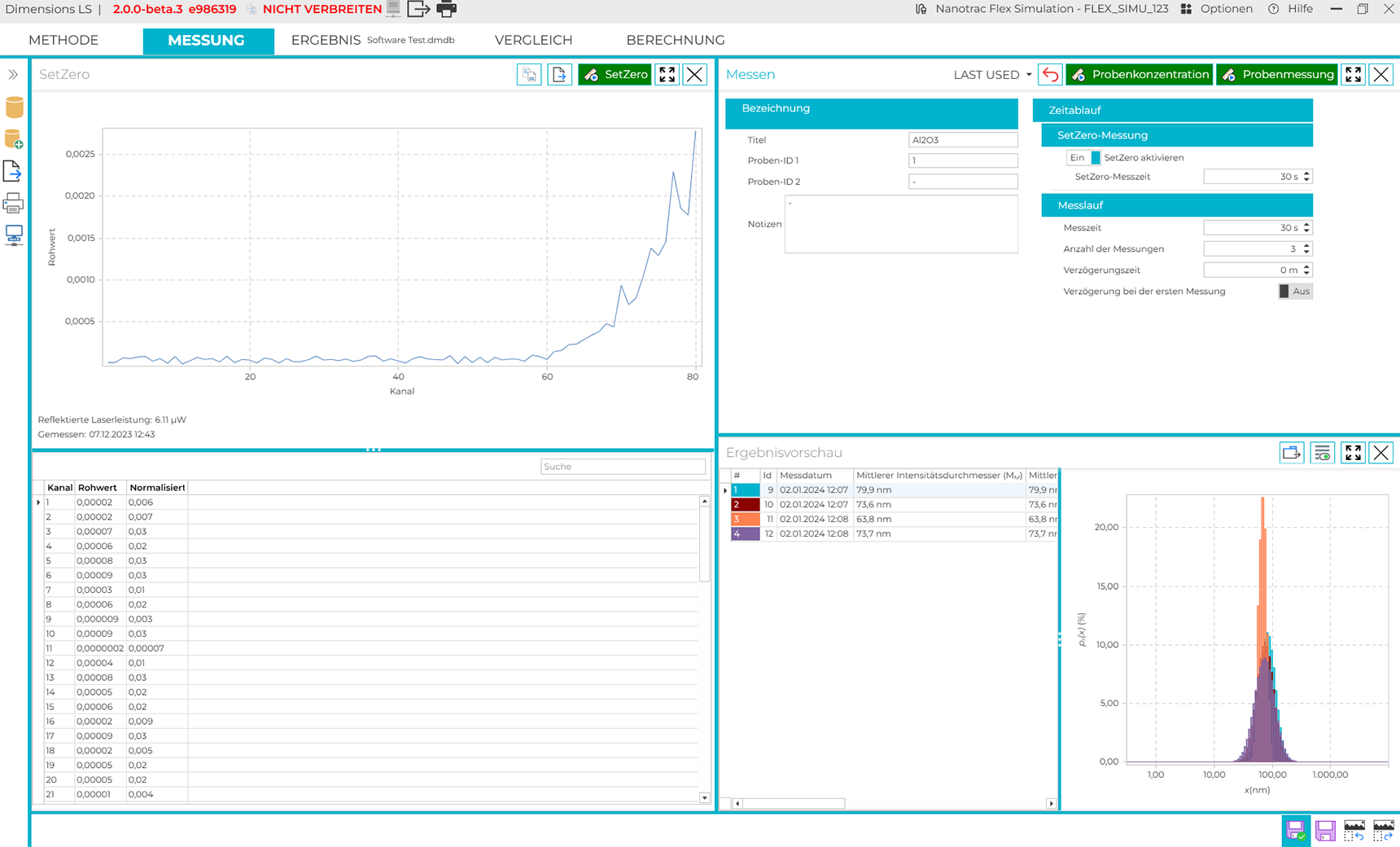

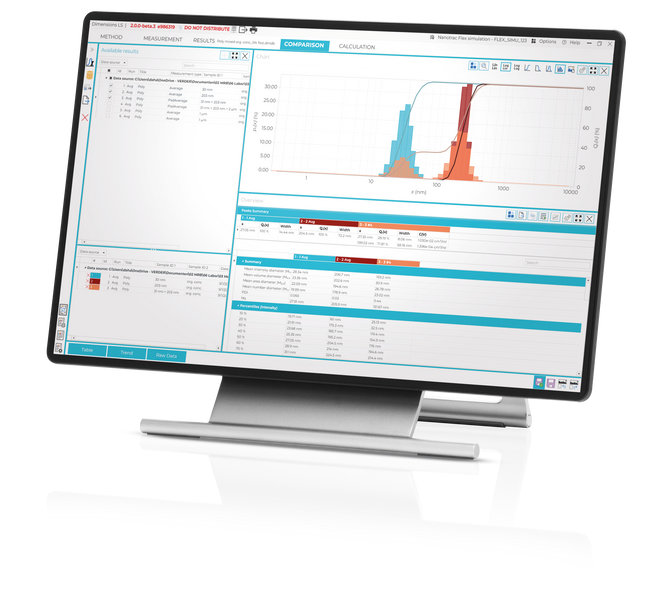

只需点击几下即可直观使用 尺寸 LS for NANOTRAC 系列

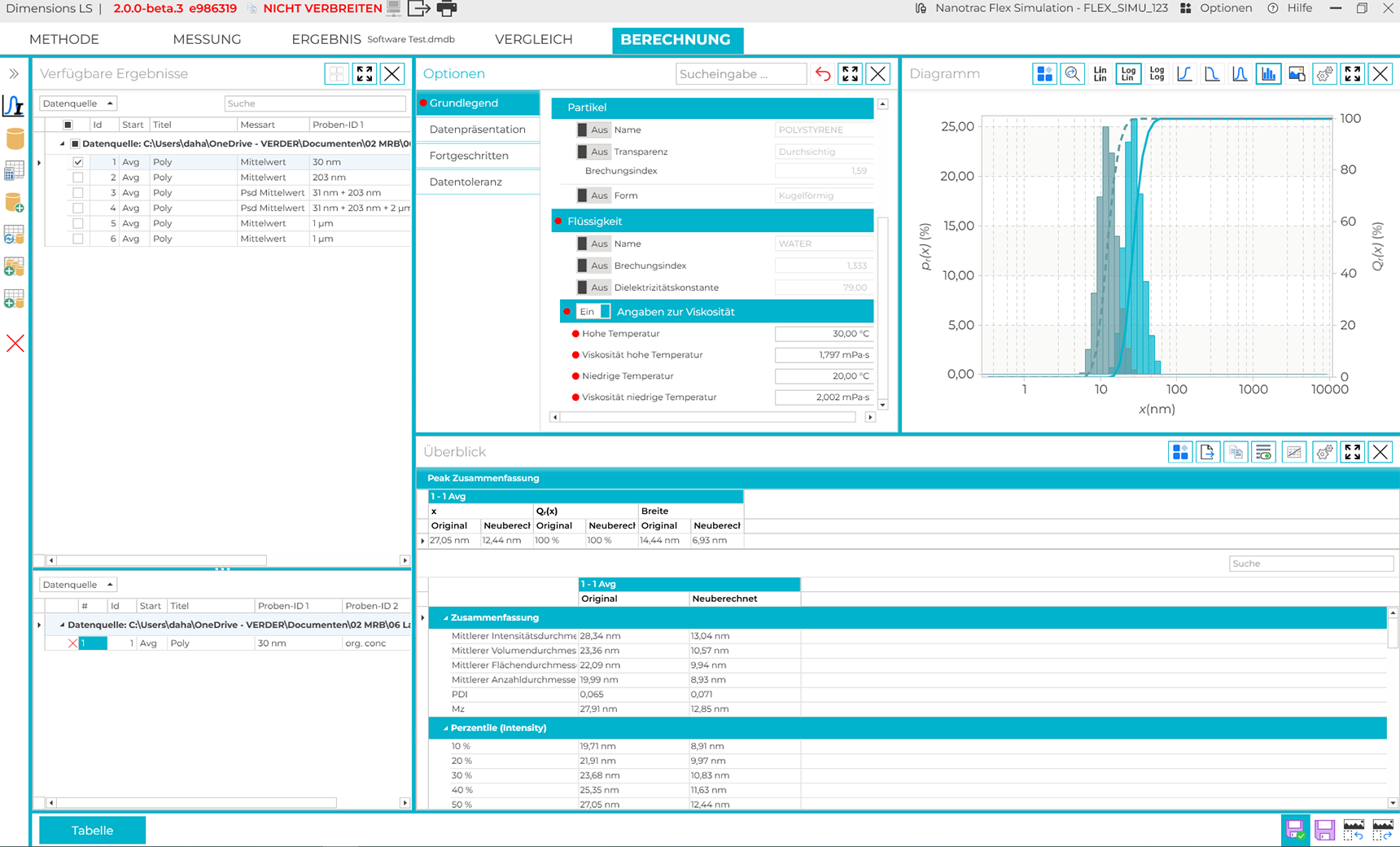

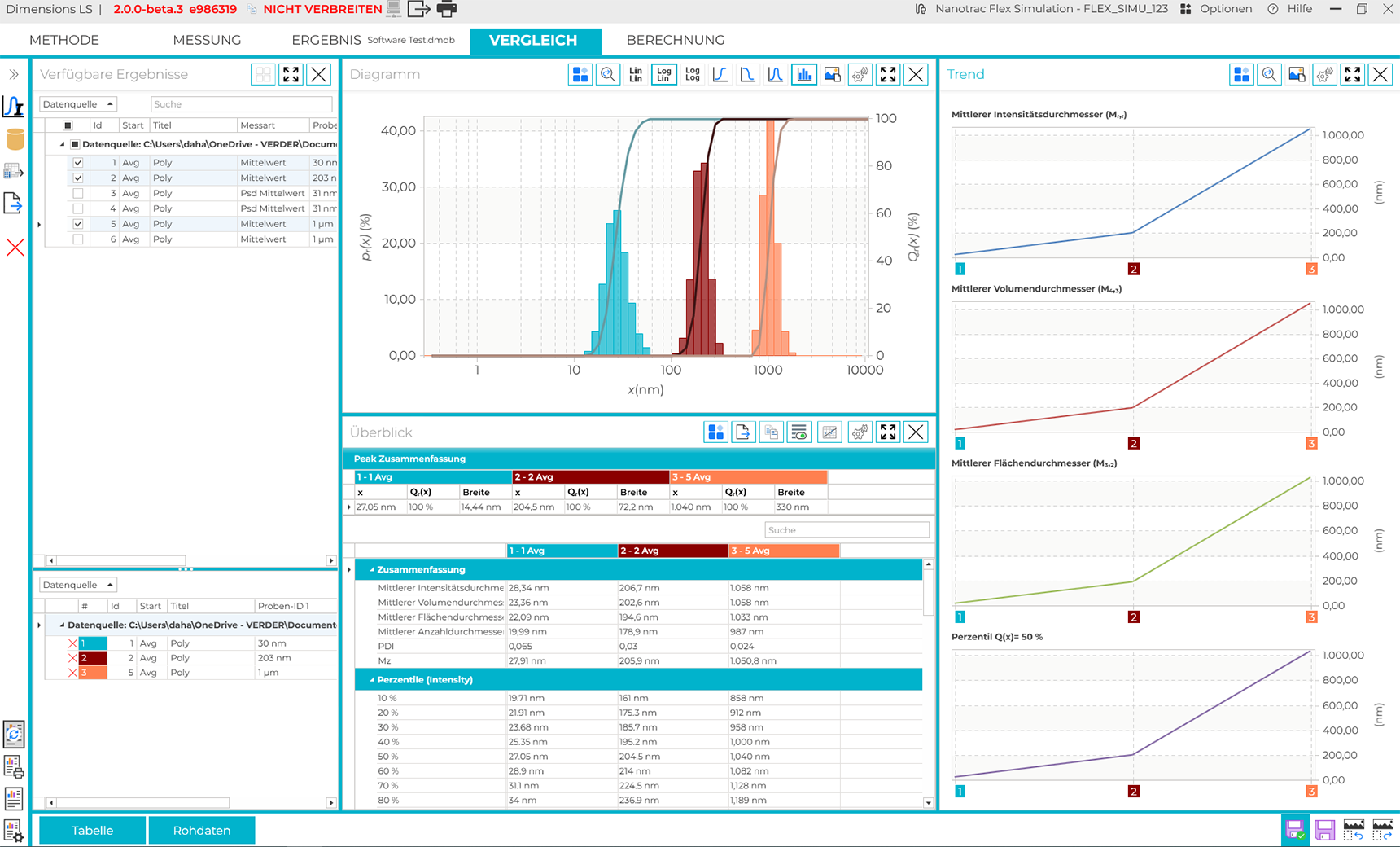

DIMENSIONS LS 软件包括 5 个结构清晰的工作区，可轻松进行 NANOTRAC 仪器的方法开发和作。即使在正在进行的测量期间，也可以在相应的工作区中显示结果和评估多个分析。
- 简单的方法开发
- 结构清晰的结果显示
- 各种评估选项
- 直观的工作流程
- 广泛的数据导出
- 多用户功能
纳米粒径分析仪 NANOTRAC FLEX 技术参数
| Method | Backscattered laser-amplified scattering reference method |
|---|---|
| Calculation model | FFT power spectrum |
| Measurement angle | 180° |
| Measuring range | 0.3 nm - 10 µm |
| Sample cell | External probe (in situ) |
| Zeta potential analysis | no |
| Molecular weight measurement | yes |
| Molecular weight range | <300 Da -> 20 x 10^6 Da |
| Temperature range | +4°C - +90°C |
| At line / in line measurement | yes |
| Reproducibility (size) | =< 1% |

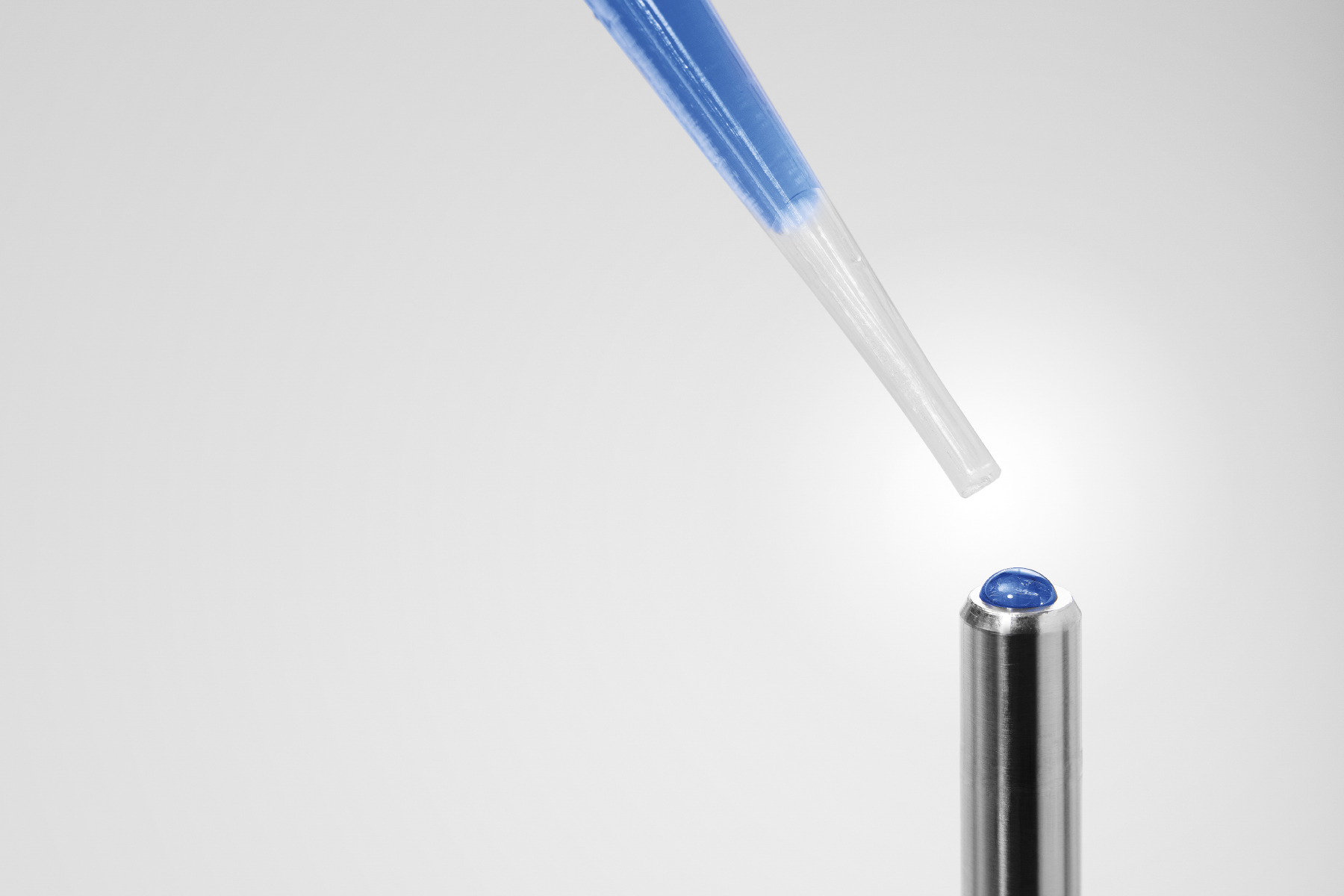

| Sample volume size measurement | 2 µL - ∞ |
| Concentration measurement | yes |
| Sample concentration | up to 40 % (sample dependent) |
| Carrier fluids | Water, polar and unpolar organic solvents, acid and base |
| Laser | 780 nm, 3 mW |
| Humidity | 90 % non-condensing |
| Dimensions (W x H x D) | 180 x 300 x 260 mm |
